Circumferential Seam Welding Machine | MIG Welder

Circumferential Seam Welding Machine, MIG Welder

MIG circumferential welding lathe

Automatic circumferential precision welding lathes for tanks— MIG welding

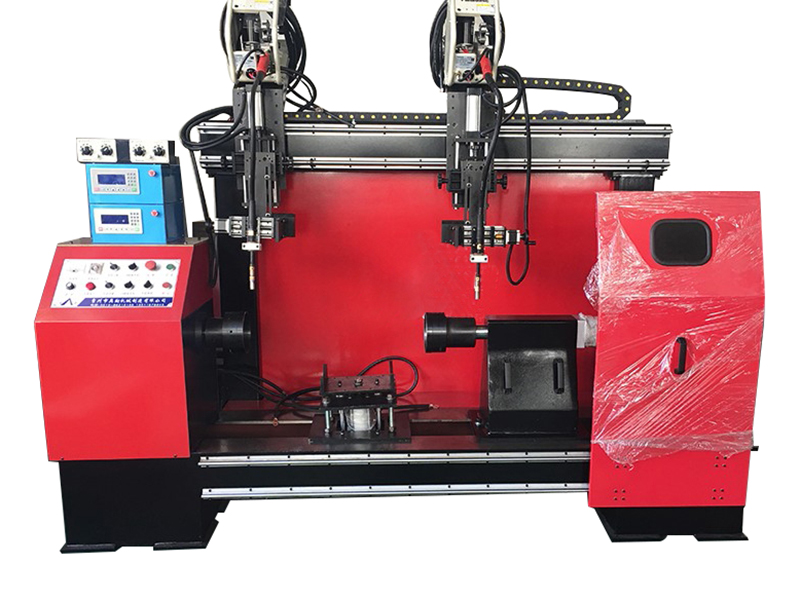

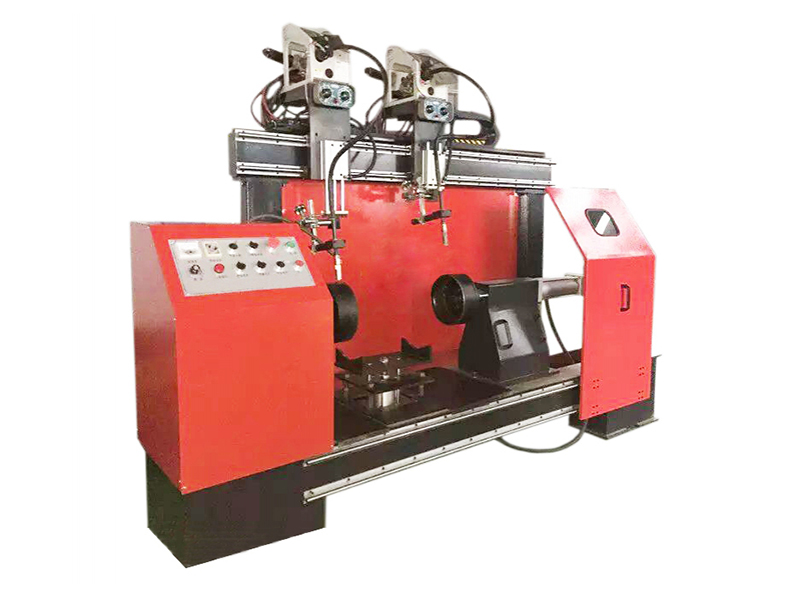

Xuzheng MIG circumferential seam welding machines are designed to produce circumferential weld seams on a wide range of cylindrical workpieces. They are commonly applied to external circumferential seam welding on materials of carbon steel, stainless steel, aluminum.

This type of circumferential seam welder has 2 welding torches for an efficient welding performance. MIC welding process features high density of current, strong penetrability and smooth welding quality.

Specifications

ITEM	XZHFH-1000
Input Power	220V 50HZ
Rated Power(KW)	28
Air Pressure Range(Mpa)	0.1～0.6
Work-piece Diameter(mm)	40～400
Work-piece Length(mm)	100～1000
Dimension-LengthWidthHeight(mm)	270011002100
Weight(Kg)	800

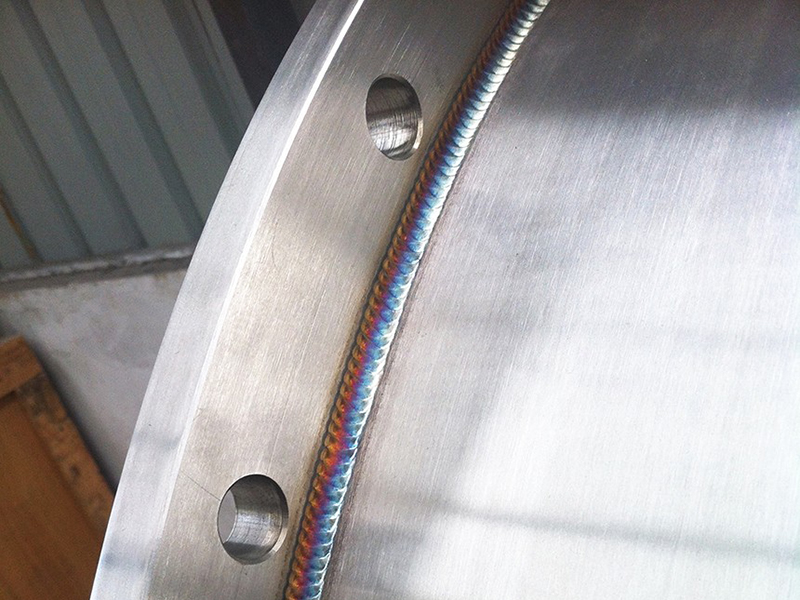

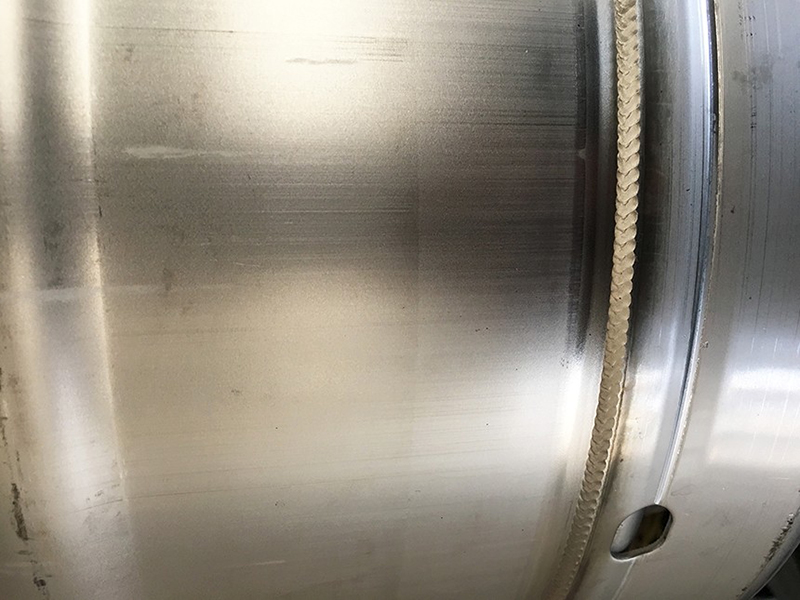

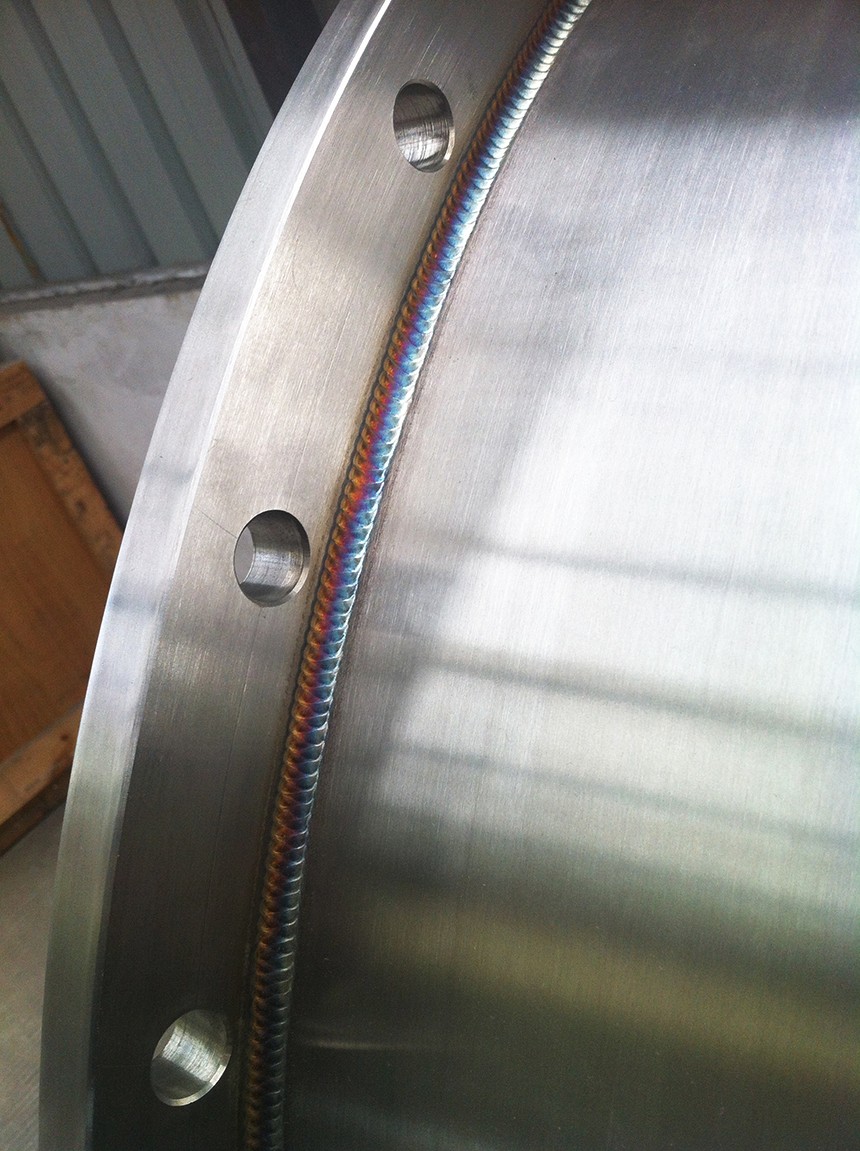

Samples

Xuzheng not only provides our standard seam welders in stock, but also can manufacture custom models depending on your specific welding needs, such as material to be welded, pipe diameter, seam length, etc.
