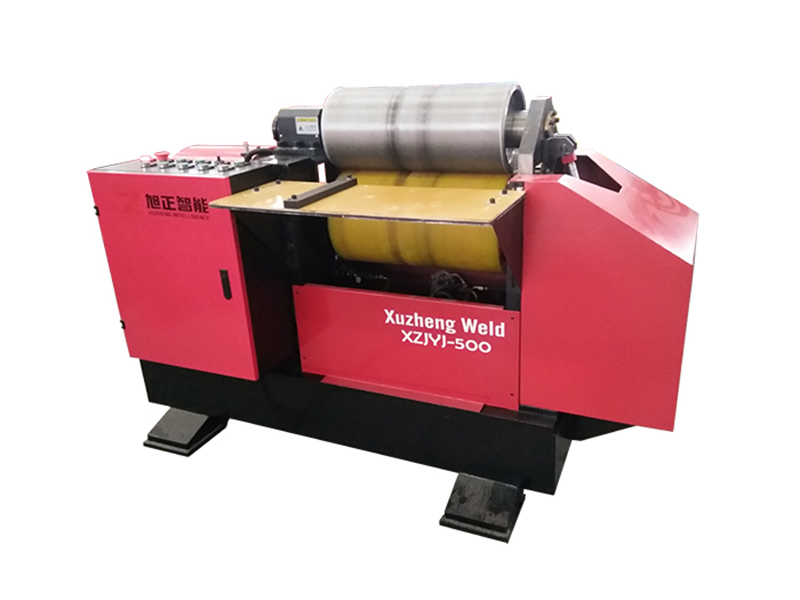

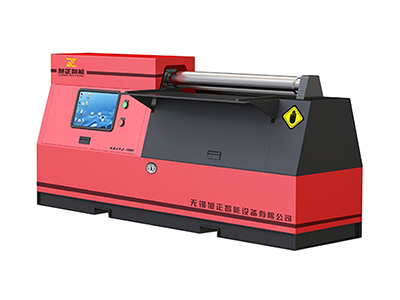

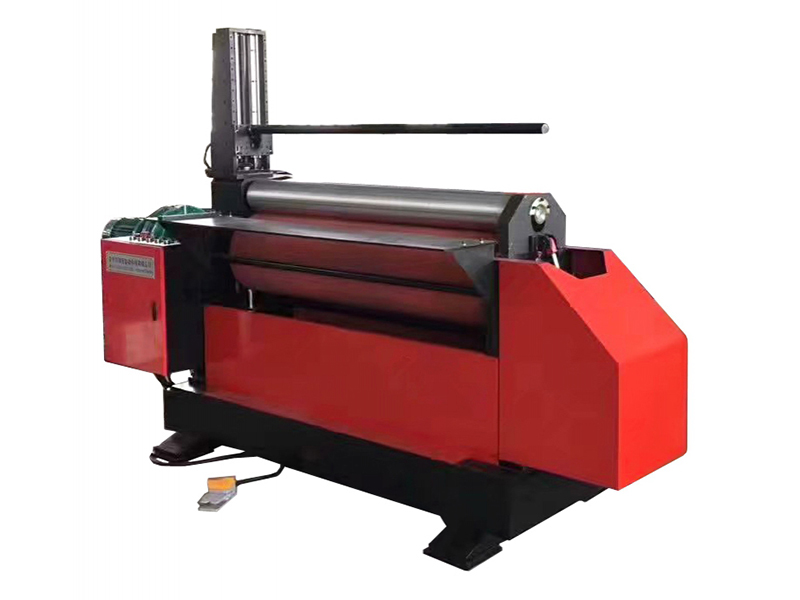

Plate Rolling Machine, 2 Roll Plate Bending Machine

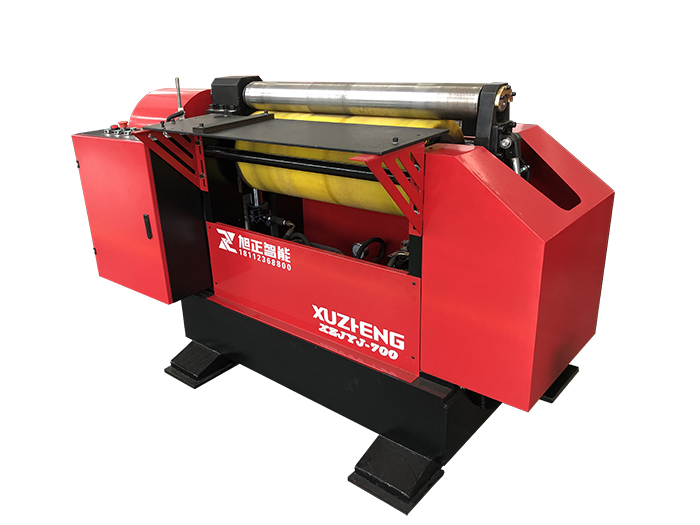

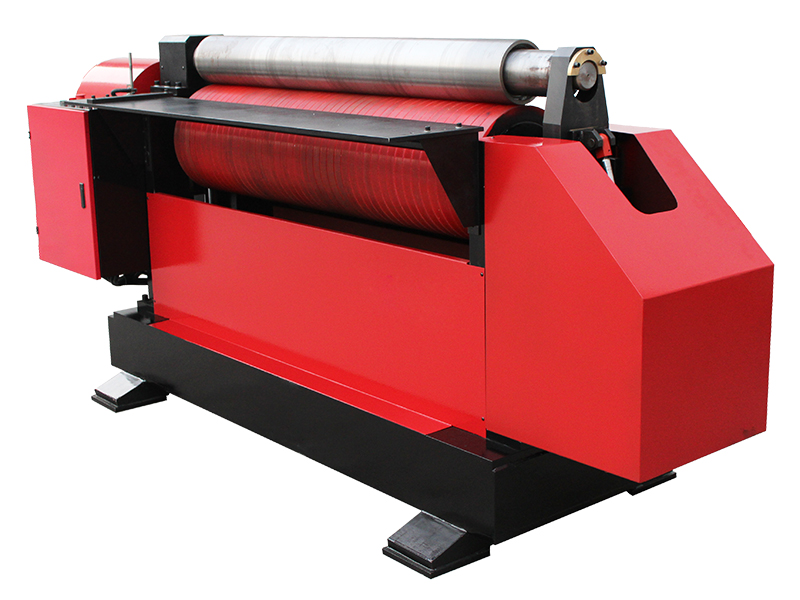

Xuzheng hydraulic 2-roll plate bending machines are designed for rolling and bending thin plates with thickness less than 4mm, to meet the needs of pre-processing of sheet metal from tank manufacturers, cylinder manufacturers, tube manufacturers.

These plate bending rolls are widely used for processing water heater tank, air tank, fire extinguisher, air compressor tank, resonator pipe, air duct in various industries, including auto parts, solar water heaters, food machinery, metal processing equipment, etc.

The maximum thickness of materials processed by this hydraulic plate rolling machine reaches 6mm, and diameter less than 600mm. By adopting high grade polyurethane rollers, it can ensure stable operation and long service life.

Applicable materials:

Specifications

Standard Type

ITEM	XZJYJ-500	XZJYJ-700	XZJYJ-1000	XZJYJ-1500
Rated Power(KW)	3	3	6	6
Hydraulic Pressure Range(Mpa)	3～8	3～8	4～12	4～12
Work-piece Thickness(mm)	0.8～2.5	0.8～2.5	0.8～3.5	0.8～3.5
Work-piece Diameter(mm)	90～300	100～300	150～450	200～450
Work-piece Length(mm)	50～500	50～700	50～1000	50～1500
Dimension (LWH) (mm)	190010001200	230010001300	290010001400	330010002100
Weight(Kg)	1100	1500	1800	2400

Custom Type

ITEM	XZJYJ-Z-500	XZJYJ-Z-700	XZJYJ-Z-1000	XZJYJ-Z-1500
Rated Power(KW)	6	6	7.7	7.7
Hydraulic Pressure Range(Mpa)	4～12	4～12	5～16	5～16
Work-piece Thickness(mm)	0.8～6	0.8～6	0.8～6	0.8～4
Work-piece Diameter(mm)	100～450	100～450	200～600	200～600
Work-piece Length(mm)	100～500	100～700	100～1000	100～1500
Dimension (LWH) (mm)	250010001400	250010001400	310011001500	350011001500
Weight(Kg)	1800	1800	2300	2700

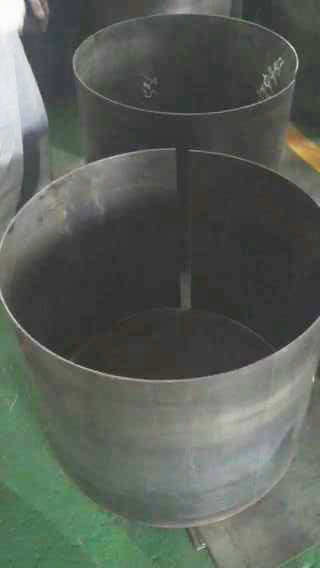

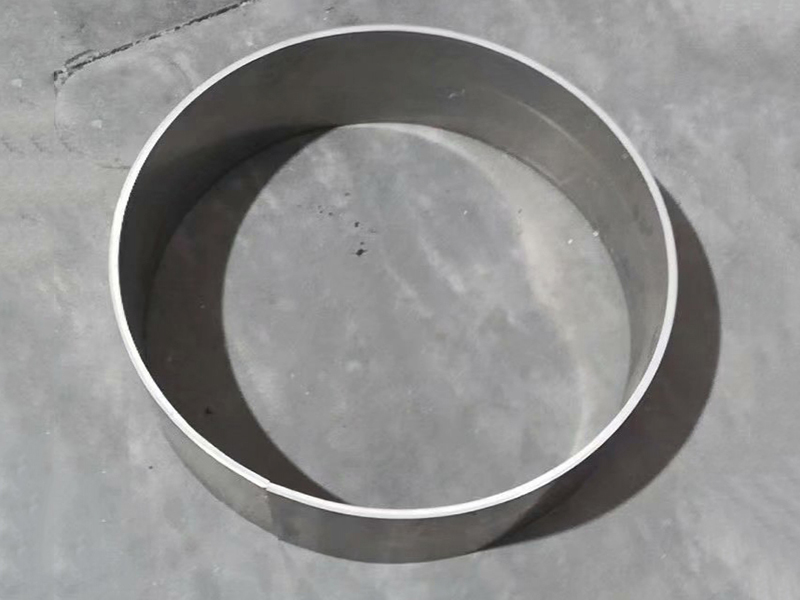

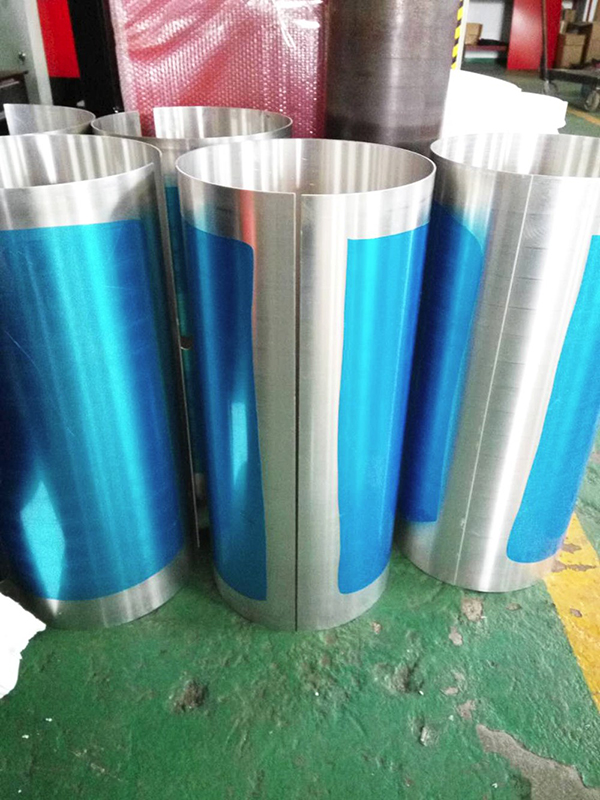

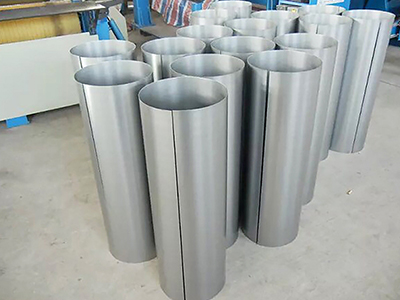

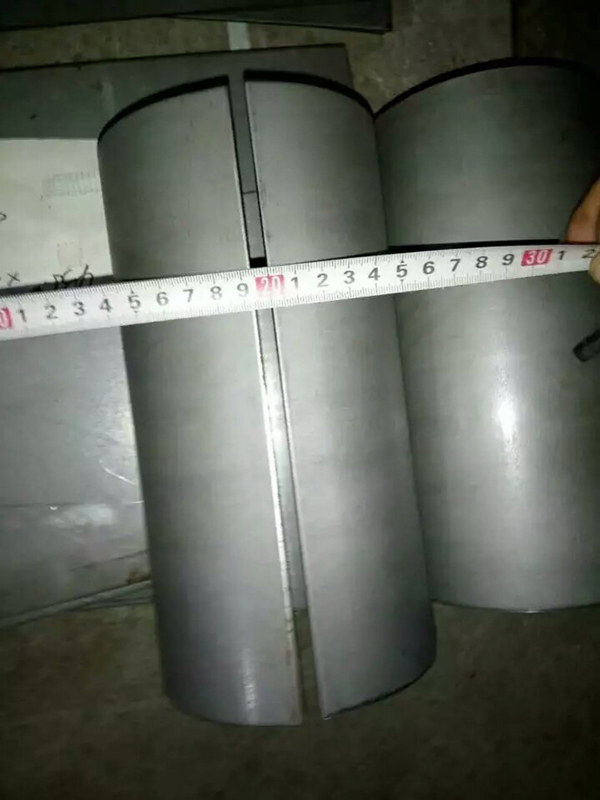

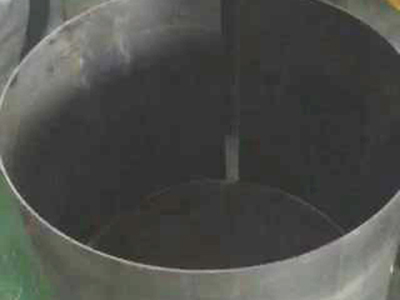

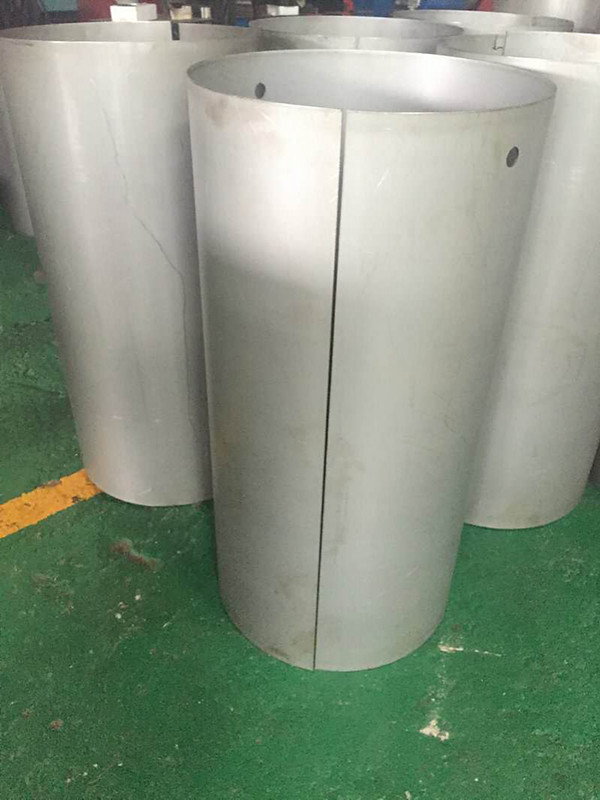

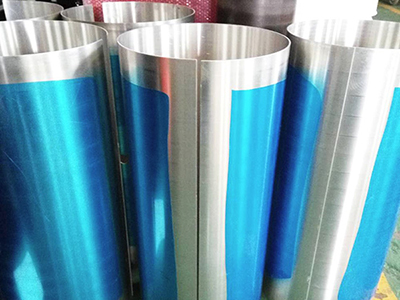

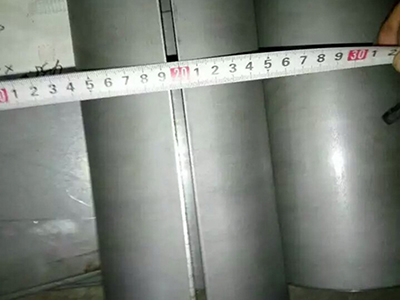

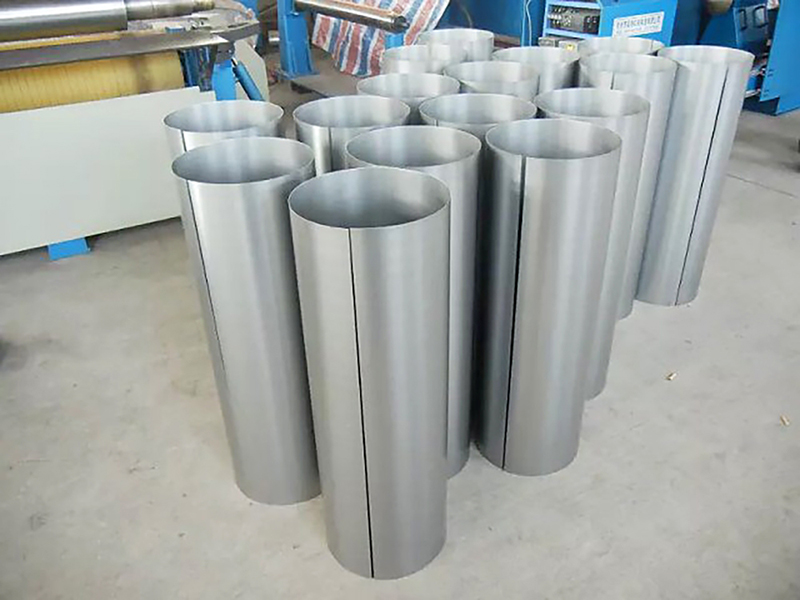

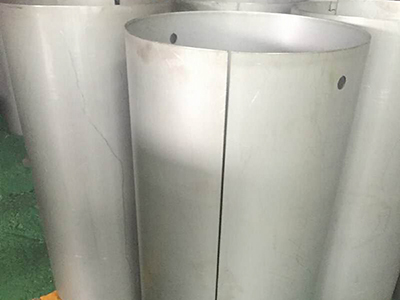

Samples

Xuzheng not only provides our standard seam welders in stock, but also can manufacture custom models depending on your specific welding needs, such as material to be welded, pipe diameter, seam length, etc.
