Longitudinal Seam Welding Machine | MIG Welder

Longitudinal Seam Welding Machine, MIG Welder

Longitudinal seam welder, Seam welder with MIG welding

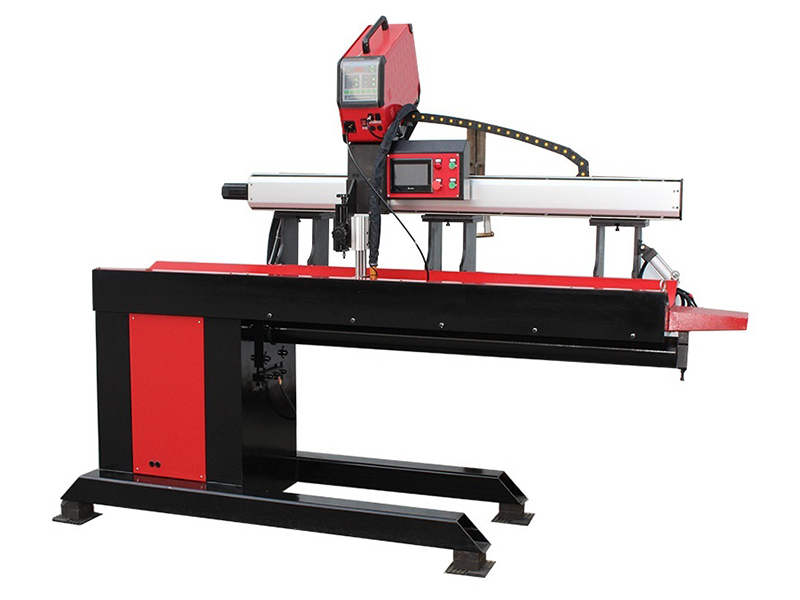

Xuzheng MIG longitudinal seam welding machines (MIG welder) are typically fabricated for linear seam welding of cylindrical and square shaped parts. They are applicable to gas shielded welding, argon arc welding and other various welding processes.

The hold down fingers are pneumatically actuated for workpiece clamping, to ensure that workpiece surface is fully contacted with copper hold-down strips (copper finger tips), thus welding quality can be guaranteed. Besides, backing gas fixture (trailing gas shield) is equipped to prevent deformation of workpiece during welding process, resulting neat welding seam on both front and back sides.

With PLC controlling, the entire welding process is automatically operated.

These MIG longitudinal seam welding machines are commonly used to weld nearly all kinds of metals, including welding of pure aluminum, aluminum alloy, copper, copper alloy and stainless steel.

Specifications

ITEM	XZZFH-1000	XZZFH-1500	XZZFH-2000
Rated Power(KW)	14	14	14
Air Pressure Range(Mpa)	0.1～0.6	0.1～0.6	0.1～0.6
Work-piece Thickness(mm)	0.8～3	0.8～4	0.8～4
Work-piece Diameter(mm)	120～600	120～600	120～600
Work-piece Length(mm)	1000	1500	2000
Dimension LengthWidthHeight(mm)	22009001200	270011002100	310011002100
Weight(Kg)	800	1200	1600

In addition to MIG welding, Xuzheng longitudinal seam welding machines can also be used for TIG welding, MAG welding.

Xuzheng not only provides our standard seam welders in stock, but also can manufacture custom models depending on your specific welding needs, such as material to be welded, pipe diameter, seam length, etc.
