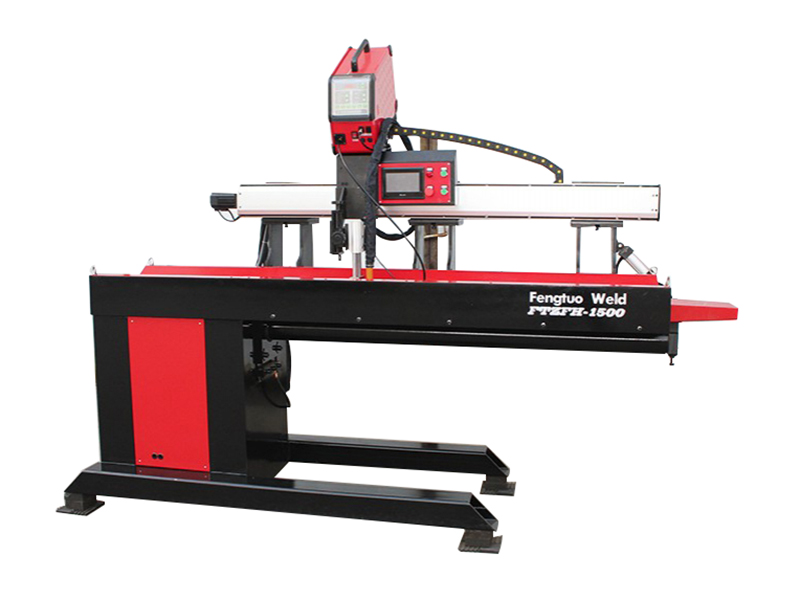

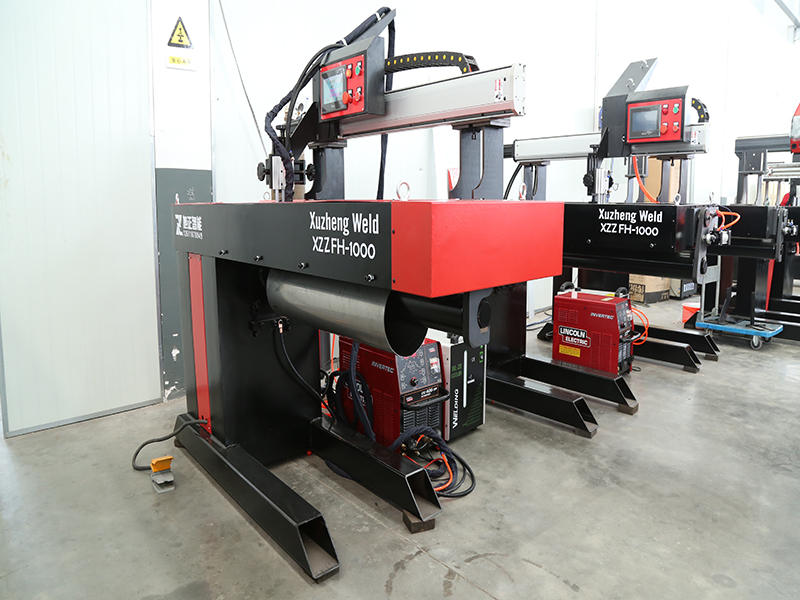

Longitudinal Seam Welding Machine | TIG Welder

Longitudinal Seam Welding Machine, TIG Welder

Longitudinal welding seamer

These welding machines are widely used by tank and cylinder manufacturer as stand-alone welding machine or in production lines.

These automatic longitudinal TIG seam welding machines are mainly designed for external welds on round tanks or cylindrical metal parts.

TIG welder is able to bring a number of features, such as smoother weld seams and easy control of working height. Through TIG welding process, metal pieces can be efficiently treated by keeping its height in line with the width of weld seam.

Another characteristic of TIG welder is that it has faster processing speed comparing with other welding methods, as it reaches 350-500mm/min in usual.

Compared with plasma arc welding machine, longitudinal TIG seam welder represents more value for the customer who wants a commercial quality and easily operated welding machine at a reasonable price.

Material to be welded: Stainless Steel, Carbon Steel, Galvanized Steel
Applications: Tubes, Cylinder, Middle and Large-scale Cryogenic Storage Tank
Welding range: Material Thickness 1.2-8mm

Specifications

ITEM	XZZFH-1000	XZZFH-1500	XZZFH-2000
Rated Power (KW)	14	14	14
Air Pressure Range (Mpa)	0.1～0.6	0.1～0.6	0.1～0.6
Work-piece Thickness (mm)	0.8～3	0.8～4	0.8～4
Work-piece Diameter (mm)	120～600	120～600	120～600
Work-piece Length (mm)	1000	1500	2000
Dimension-LengthWidthHeight (mm)	22009001200	270011002100	310011002100
Weight(Kg)	800	1200	1600

In addition to TIG welding, Xuzheng longitudinal seam welding machines can also be used for MIG welding and MAG welding.

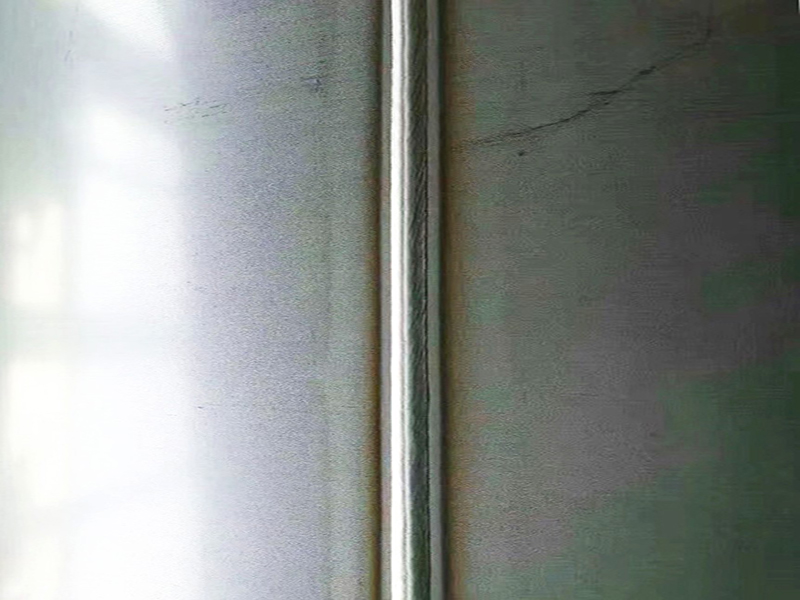

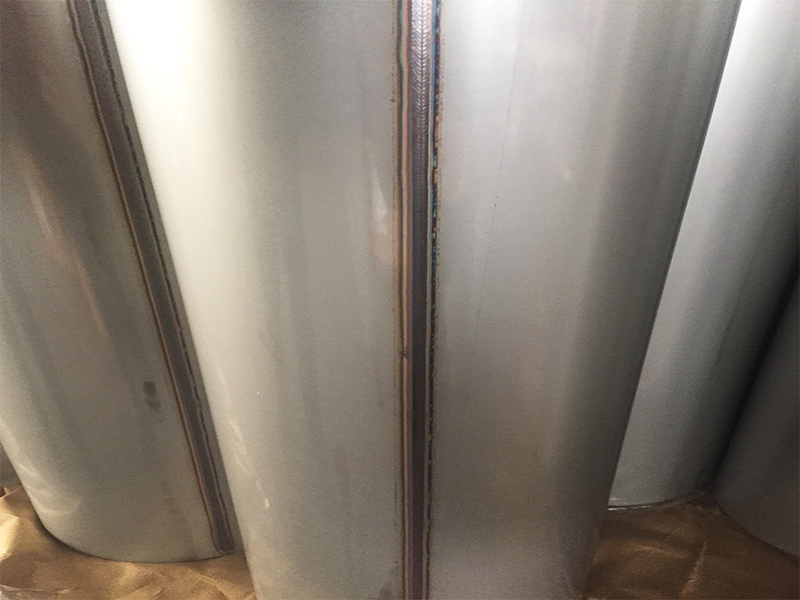

Samples

Xuzheng not only provides our standard seam welders in stock, but also can manufacture custom models depending on your specific welding needs, such as material to be welded, pipe diameter, seam length, etc.
