Longitudinal seam welding machine | MAG Welder

Longitudinal seam welding machine, MAG Welder

Seam welder manufacturer

Our welding machines are widely used in areas where continuous weld is required.

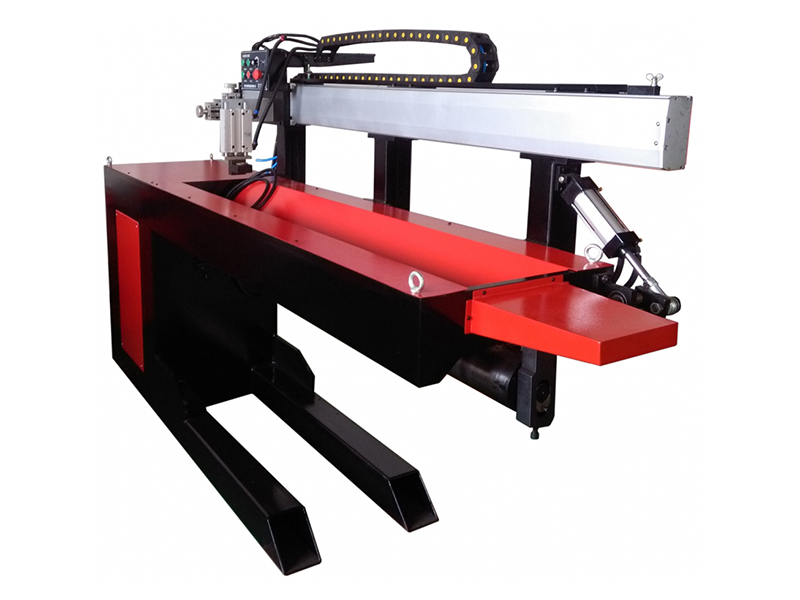

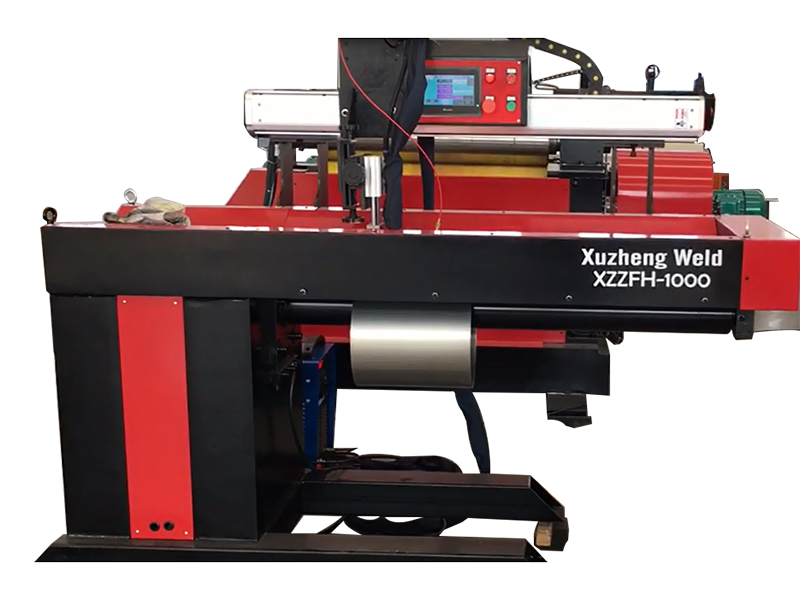

Xuzheng automated MAG longitudinal seam welders are ideal for linear seam welding on tubes, tanks and cylinders. A great deal of characteristics can be found in MAG longitudinal seam welding process, faster welding speed, less welding distortions, lower economic cost, etc. It provides single pass weld on materials with 100% penetration.

Furthermore, water cooling is available in this MAG welder. By equipping with a water tank for effective cooling and to prevent heat distortion to the material

Automated MAG longitudinal seam welding machine aims at providing smooth linear seam welds on carbon steel, stainless steel, and alloy steel cylindrical parts.

Material to be welded: Carton Steel, Stainless Steel, Alloy Steel
Applications: Tubes, Tanks, Cylinders
Welding range: Material Thickness 1.2-6mm

Specifications

ITEM	XZZFH-1000	XZZFH-1500	XZZFH-2000
Rated Power(KW)	14	14	14
Air Pressure Range(Mpa)	0.1～0.6	0.1～0.6	0.1～0.6
Work-piece Thickness(mm)	0.8～3	0.8～4	0.8～4
Work-piece Diameter(mm)	120～600	120～600	120～600
Work-piece Length(mm)	1000	1500	2000
Dimension-LengthWidthHeight(mm)	22009001200	270011002100	310011002100
Weight(Kg)	800	1200	1600

In addition to MAG welding, Xuzheng longitudinal seam welding machines can also be used for TIG welding, MIG welding.

Samples

Xuzheng not only provides our standard seam welders in stock, but also can manufacture custom models depending on your specific welding needs, such as material to be welded, pipe diameter, seam length, etc.
