Rotary Welding Robot | TIG Welder

Rotary Welding Robot, TIG Welder

Rotary welding machinery solution

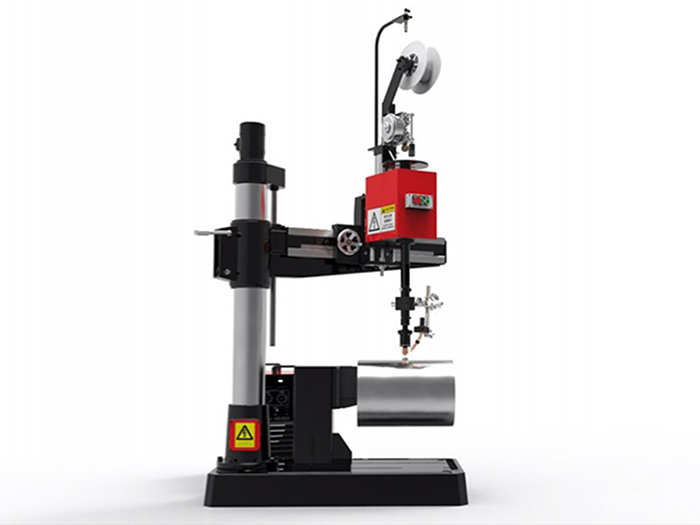

Xuzheng TIG rotary welding robots are mainly used to create welds for jointing workpieces. Controlled by PLC system, welding torch is rotated while the workpiece is kept still.

Our TIG rotary welding machines represent more value for the customer who wants a commercial quality and easily operated welding machine at a reasonable price. They presents features of good airtightness, less welding slag, and neat weld seam. With adding welding wire in welding process, TIG welding method is applicable to weld pressure vessel baseplate and thinner metal plate. And a variety of non-ferrous metals can be welded, such as aluminum, magnesium, titanium, copper, as well as stainless steel and heat resistant steel.

Specifications

ITEM	XZZQH-300	XZZPH-500	XZZQH-1000
Input Power	220V 50HZ	220V 50HZ	380V 50HZ
Rated Power(KW)	14	14	14
Air Pressure Range(Mpa)	0.1～0.6	0.1～0.6	0.1～0.6
Work-piece Diameter(mm)	100～300	50～500	100～1000
Work-piece Length(mm)	30～1000	20～500	30～1000
Dimension-LengthWidthHeight(mm)	10008002300	600700700	15008002000
Weight(Kg)	350	300	800

Xuzheng not only provides our standard seam welders in stock, but also can manufacture custom models depending on your specific welding needs, such as material to be welded, pipe diameter, seam length, etc.
