Rotary Welding Robot | MAG Welder

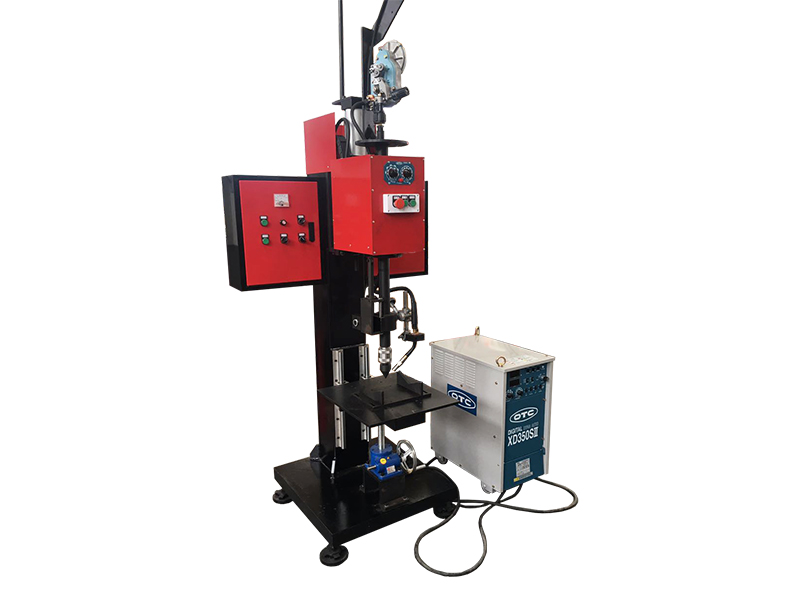

Rotary Welding Robot, MAG Welder

Rotary welding machine solution

These rotary welding robots adopt MAG welding technique, and are mainly used to weld joints of metal workpieces. With operation method of rotating welding torch, the workpiece is kept still, thus ensuring high welding precision and work efficiency.

MAG rotary welding machines nearly welds all kinds of metals, especially pure aluminum, aluminum alloy, copper, copper alloy and stainless steel.

Specifications

ITEM	XZZQH-300	XZZPH-500	XZZQH-1000
Input Power	220V 50HZ	220V 50HZ	380V 50HZ
Rated Power(KW)	14	14	14
Air Pressure Range(Mpa)	0.1～0.6	0.1～0.6	0.1～0.6
Work-piece Diameter(mm)	100～300	50～500	100～1000
Work-piece Length(mm)	30～1000	20～500	30～1000
Dimension-LengthWidthHeight(mm)	10008002300	600700700	15008002000
Weight(Kg)	350	300	800

Xuzheng not only provides our standard seam welders in stock, but also can manufacture custom models depending on your specific welding needs, such as material to be welded, pipe diameter, seam length, etc.
